Huixian Xinda Textile Machinery Parts Co., Ltd. provides automatic shuttle for disc looms with dimensions of 405 * 47 * 34.5mm. The outer dimensions of the red brown nylon shuttle are: total length is 405mm, shuttle bottom width is 47mm, shuttle body height is 34.5mm（The height of the iron clamp position is 34.5mm, and the height of the yarn guide position is 35mm）, iron chuck specifications are 5 grooves, and the front part of the shuttle's yarn feeder model is DS202 (total length is 45mm, width is 28mm, and height is 20mm). The shuttle body is made by injection molding, and the shuttle tips at both ends are designed to be detachable.

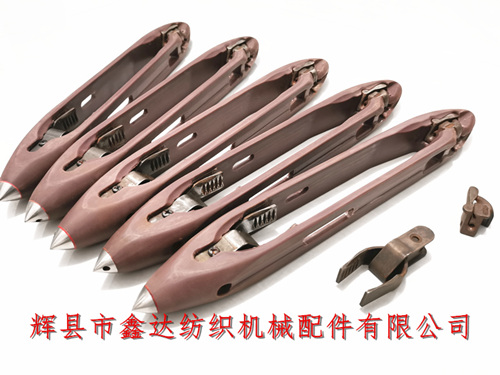

This shuttle is not divided into left and right hands, as shown in the picture (left hand). A steel needle is implanted in front of the shuttle's yarn hole to block the yarn when the shuttle flies to the left, preventing the weft from coming into contact with the shuttle body and tip, and reducing weft breakage.
The above picture is a top view of the automatic changing nylon shuttle. On the right side of the picture are the iron chuck (used to hold the weft tube) and the yarn feeder (iron). The tail of the yarn feeder has an inlet hole in the shape of a horn, and there is a groove next to it. The bottom of the yarn feeder has a threaded hole, which is fixed by M4 screws through the bottom of the shuttle. There is a through circular hole with a diameter of 5mm on the side, which is fixed by cross head screws.
The weight of a single nylon shuttle is 0.47 kilograms, with a quantity of 50 pieces per box and a minimum order quantity of 100 pieces. The delivery time is about 15-20 days. This type of shuttle is different from domestic automatic shuttle changing machines, as it is used for automatic weft changing looms; If you need to purchase shuttles, disc looms, automatic yarn changing machines, loom shuttles, special specification nylon shuttles and other products, please contact our sales personnel for consultation.
