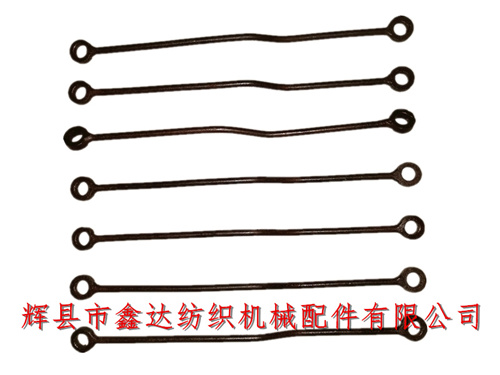

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides domestic 1511 textile accessories O00-2 warp break stop rod connect rod. Shuttle loom accessories O00-2 is composed of O18 connecting rod and two O105 tightening rings. The total length of the warp break stop rod connecting rod is 257mm. The O105 tightening ring is an inner hole with a diameter of 10mm, an outer diameter of 18mm and a thickness of 5mm. Each loom uses one piece, which is connected with O23 and O25 mandrel.
Although the O00-2 connecting rod of textile hardware fittings is bent, it is not divided into left hand and right hand. The weight of a single warp breaking stop rod is about 0.1kg. Methods for correcting the swing rod: (1) the bottom of the menopause frame is upward, and loosen the middle hanging foot O45. (2) Insert the swing shaft into the supporting foot o43 on one side, disconnect the center of the supporting foot shaft hole on the opposite side, and align the supporting foot position on both sides. If it is not flexible, it can be knocked with a small hammer, and the supporting feet O43 on both sides can be filed by aligning the positions of the warp stop frame O1 and O2.
(3) Correct the height of the swing gear rod O35 and the gear cutting rod to be 1.6mm, and adjust the upper and lower positions of the supporting foot O43. If the swing gear rod is not parallel to the gear cutting rod, it shall be corrected.
(4) Install the middle hanging foot to make the shaft flexible. If it is not flexible, file the middle part and hang the foot.
(5) The correction is flexible. Install the middle diaphragm O32 and tighten all the screws on the warp stop frame.
(6) Fix the left and right positions of the swing rod so that both ends do not touch the warp stops O1 and O2, and the transverse movement is less than 0.4mm. Fix the swing rod collar O19, and the supporting head screw is downward.
1511 textile accessories O00-2 warp break stop rod, one end of the connecting rod is connected to the change rod O29 through O25. For the purchase of shuttle loom textile accessories, 44 inch warp break stop rod, 1511 connecting rod and other products, please contact Xinda Textile accessories company for details!
