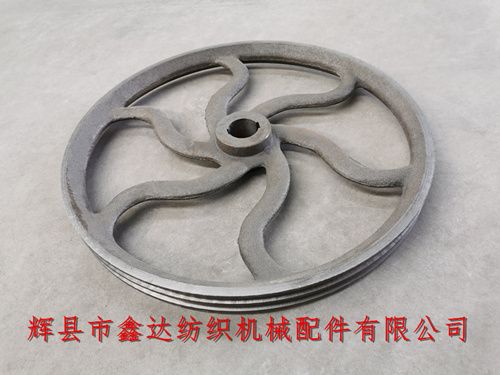

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided D5 V-belt pulley|Textile Machine Accessories|1511 Shuttle Loom Accessories. The D5 belt pulley is connected to D4 through a V-belt for transmission. The inner hole diameter of the D5 belt pulley is 38mm and is fixed on the bending shaft of the loom (one end of the long shaft head). The surface of the D5 plate is not allowed to crack, the journal is not allowed to crack, and the adjacent two ribs are not allowed to break.D5 V-belt Pulley For 1511 Power Loom Drive
The D5 triangular belt pulley is simplified into two belt grooves and is suitable for A1700 triangular belts (commonly used on 1511 looms). The material is pig iron HT15-33, and the number of D5 used on each loom is 1. This D5 part number was used in early weaving machines, but it is less commonly seen in the schematic and application scenarios when it is later changed to a clutch type.
There are two opposite keyways in the middle of the D5 V-belt pulley, one of which is 10mm wide and the other is 12mm wide internally, which can be adapted to curved shafts with different keyway widths. During use, the wear out width of the keyway does not exceed 0.4mm. D5 V-belt pulley | Textile machine accessories | 1511 shuttle loom accessories - The minimum order quantity for belt pulley is 5 pieces, and the delivery time is approximately 5-8 days.
After selecting and installing the D5 belt pulley, the weaving machine becomes directly started, which is generally suitable for skilled barricades to operate. When installing, it is necessary to package the D4 motor belt pulley and the D5 triangular belt pulley with the central plane located on the same plane to prevent the triangular belt from biting or shortening its service life.
