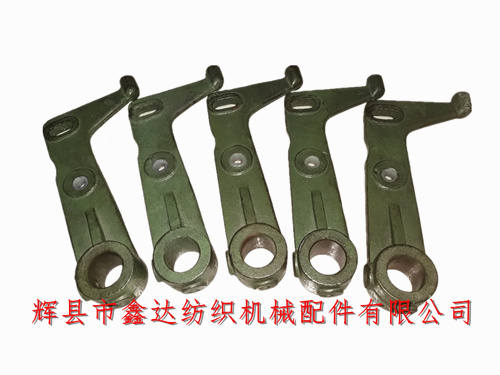

Xinda Textile Machinery Accessories Co., Ltd. provides GA615 loom accessories - buffer bar SJ-27 loom external let off accessories. The let off device of the loom is divided into internal let off and external let off. SJ27 is an external let off accessory, which is installed on the outside of the side wall panel of the loom shed. Its overall dimensions are: the total length is 24 cm, the thickness is 4 cm and the width is 11.3 cm; The diameter of the tail shaft hole is 30mm, and there are two M10 support head screw holes (in a right angle shape) in the outer ring; The inner hole inlaid with white nylon sleeve in the middle is 10mm, and the length and width of the front chute are 26.5mm and 13mm. 1515 and GA615 looms use the same external let off device, which can meet the let off requirements of different door widths.
The external let off accessories of the loom cover more than 100 loom parts. Compared with the previous internal let off devices, they have the advantages of more stable let off and low failure rate. They are commonly installed on 56 inch and 75 inch shuttle looms. This let off device can also be used on 1515k looms.
The material of SJ-27 buffer rod is pig iron HT15-32, and the outer diameter of the middle nylon sleeve is 15mm. The supporting foot of SJ-27 buffer rod is not divided into left hand and right hand. The weight of a single buffer rod SJ27 is about 1kg, and the number of each loom is 1. As shown in the figure above, the outer diameter of the 30mm part of the shaft hole is 54mm, the front support head part has M6 screw hole, and the diameter of the support head is 18mm.
1515-56 inch loom and GA615-75 inch wide loom are widely used. There are a large number of loom equipment at home and abroad, mainly concentrated in Southeast Asia. Our company is committed to providing Chinese and foreign customers with stable and reliable quality textile accessories (with shuttle loom parts). Users of textile enterprises are welcome to inquire.
If you need to buy Textile buffer rod, external let off device, external let off accessories, SJ27 textile machinery accessories, shuttle loom parts, old GA615 loom let off accessories and other products, please contact Mr. Yang of Xinda Textile accessories!
