The chicken head device is composed of a supporting head, a baffle, a pressing spring,Weft Break Stop Parts For Automatic Loom,a swinging head mandrel, a main support, etc. it is mainly used for automatic shuttle loom weft breaking and stopping. The 7-shaped hook is fixed by a pressing spring. The chicken head pecking device is relatively sensitive. The specifications of the chicken head are divided according to the thickness of the tail steel wire, generally 0.6mm, 0.8mm, 1.0mm, etc. the model of the chicken needle is selected according to the thickness of the fabric.
When installing the chicken head device, it is necessary to distinguish the left hand and the right hand. The key difference lies in the two holes (fixed direction of the hook) on the top plane of the black bump head. The shaft hole of the main bracket bracket foot is provided with a clamping groove, which is clamped and fixed with the stop pin on the three sleeve mandrel.

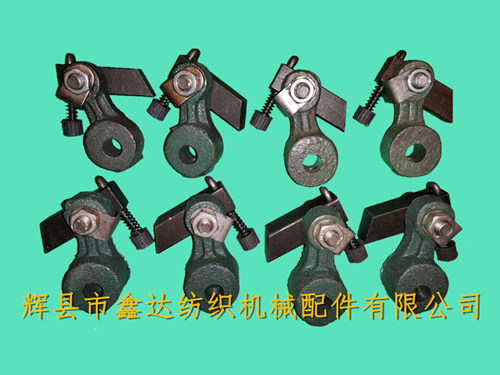

In the picture above, the upper row is R with the right hand, and the lower row is l with the left hand. When there is no weft in the shuttle cavity of the loom, the chicken needle can not detect the weft that is woven into the fabric surface, and trigger the mechanical device to realize quick stop.
The accessories at both ends of the three sleeve main parts of the weft breaking stop device generally use M6 or M4 jackscrews or nuts. When the iron castings are tightened, the torque should be controlled to prevent the textile accessories from being damaged. The package of broken weft stop fitting chicken head for automatic shuttle changing machine is in bags, 30 sets for each bag, with a weight of about 3.8kg.
The chicken head device used for different length of casing (weft breaking and horizontal stopping pipe) is the same. The length is determined by the width of the weaving machine's own door width and the woven fabric surface. For weaving the narrow fabric surface of the wide loom, it is necessary to use the extended casing. Generally, the looms of models 1511 and 1515 can be used in general.
Textile weft breaking stop parts, weft breaking chicken head parts, automatic shuttle changing stop parts belong to the 72 series of machine parts, the code of machine parts is 72, the types are complete, brand: Xinda, welcome new and old customers to purchase cooperation!
