Huixian Xinda Textile Machinery Parts Co., Ltd. provides shuttle textile equipment - weaving machine belt R35 roll cloth wooden roller support rod adhesive tape. The total length of R35 adhesive tape is 36 centimeters, the width is 30 millimeters, and the thickness is 2.5 millimeters. The inner diameter of the two circular holes on top is 8 millimeters, and the distance between the centers of the two holes is 30.4 centimeters. The distance between the center of the circular hole and the outer end of the belt is 2.4 centimeters.

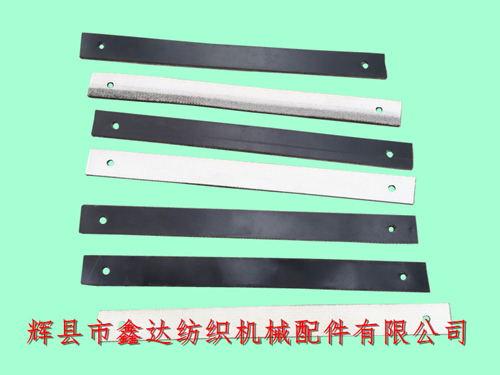

The front of the R35 loom belt is made of black leather, and the back is covered with a white fabric layer (as shown in the figure below). When using, holes can be added at different positions according to your needs to control the angle of the support rod of the fabric roller.
Weaving machine belts belong to rubber based adhesive tape products and are part of textile equipment; The packaging for R35 adhesive tape is: 20 pieces/bundle, with a minimum order quantity of 10 pieces.
The R35 belt is connected to the L16 roll support rod (short) on the 1511 loom, and to the 1515W-5102 roll support foot on the 1515 or GA615 models; The number of R35 used for each weaving machine is 2, which means 1 on each side of the weaving machine.
If you need to purchase shuttle textile belts, weaving machine belts, adhesive tape, textile equipment, R35, Please contact Mr. Yang from our company to discuss support rods and other products.
