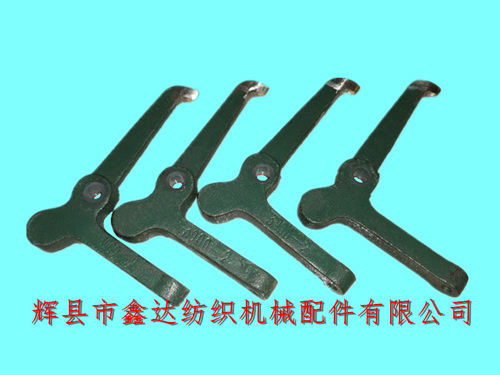

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the 1515 Shuttle Loom Temple Needle Ring 3900-2. The ordinary side brace shear hammer of the loom is divided into left hand L and right hand R. however, the shear tip of the alloy shear hammer 3900-2 is inlaid with alloy and is located in the center, so there is no difference between the left and right hands. It is composed of 3912 (gray pig iron) and nylon bushing (1010). The tail is M6 screw hole, the distance between the front scissors and the center hole is 85mm, and the thickness of the counterweight position is 11mm.
Installation requirements for the loom Temple Needle Ring: the screw hole shall not be worn out more than 0.6mm, the crank shaft of 1515 loom shall be at the front dead center position, and the distance between the shear hammer and the leather R41 used for the yarn tail shear hammer shall be (3-0.5) mm (it is good to cut after changing the shuttle, and the yarn tail length shall be determined by itself); The front, back, left and right movement shall not exceed 0.6mm; The hammering position of the head shall be closely connected with the side support box seat (3909), and the side support box seat shall be retracted by 0.8mm when falling; After installation, check that there is no quick opening and the swing is flexible.
3900 series accessories are the side support parts of 1515 and GA615 looms, which are composed of copper stab shaft (side support stab ring), side support seat, shear hammer and side support rod (extension rod). 1515 textile accessories are used for wide shuttle looms, with 56 inch, 63 inch, 72 inch, 75 inch and 110 inch door widths.
1515 loom alloy shear hammer, alloy edge support seat and alloy edge support box can improve the stability and service life of the loom edge support device. The single weight of 3900-2 Temple Needle Ring is about 0.11kg, and there are 20 pieces in each string. The quality of shuttle loom accessories is continuously improving with the market demand. Individual loom accessories have been optimized in material or design. The details are subject to the actual object.
If weaving manufacturers and textile processing companies need to purchase textile Temple Needle Ring, 1515 side brace components, alloy shear hammer, side shear hammer, textile machine accessories and other products, please contact Mr. Yang of Xinda Textile accessories company for details. Please provide accurate product details, parameters and dimensions. We will wholeheartedly provide services to Chinese and foreign textile customers!
