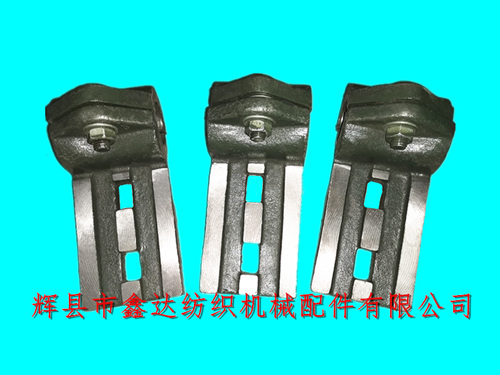

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515/GA615 textile accessories F22 split reed feet,Sley Bar Feet. The loom support foot F22 adopts split design to facilitate installation and disassembly. Its material is gray pig iron HT15-32,Sley Bar,Textile Parts,1515 Sley Bar,GA615 Sley Bar with a total length of 191.5mm, a width of 81mm, and a thickness of 11.1mm; The inner diameter of the middle hole of F22 bracket is 38mm, and both sides are fixed by two M12x45mm carriage screws (half round head square neck bolts). The peripheral thickness of the shaft hole is 12.4 mm, and the thickness of the polished surface of the leg is 15.5mm.
1511/1515/GA615 textile accessories-F22 sley legs are fixed on the rocker of the loom and located on both sides of the lower part of the machine. They rely on the swing of the rocker to provide power to the sley legs 3244 and 3245. Sley legs F22 are used for both left and right hands, and each loom uses 2 (the same amount as the sley legs).
The two rectangular holes under the reed feet are the screws for installing and connecting the reed feet. Their dimensions are: inner length 24mm, inner width 14mm. The 1515 textile accessories are made by sanding with thickened mold. The product quality is stable and reliable, and the service life is long.
The above figure is the front view and side view of the F22 reed foot. The shaft hole is processed after being locked by two bolts, and there is a flat pad support in the middle. The weight of loom fitting F22 (Sley Bar leg) is about 2.4kg, with 5 for each string; Because the outer diameter of the rocker shaft of 1511, 1515 and GA615 metric looms is the same (both 38mm), the foot support of F22 loom can also be applied to 1511 type (44 inch and 56 inch) looms.
If you need to purchase shuttle 1511 textile accessories, 1515 reed feet, GA615 loom feet, F22 split and integrated feet, please contact Mr. Yang of our company for details. 1515/ga615 textile accessories F22 split reed feet have no requirements for the minimum order quantity, and the delivery time is delivered on time according to the agreed time.
