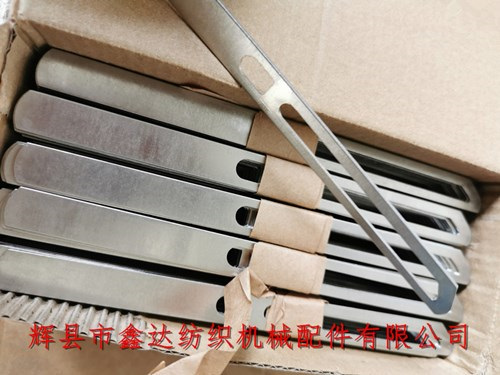

Huixian Xinda Textile Machinery Parts Co., Ltd. sells 145 stainless Steel Droppers for textile machine stop accessories.Steel Droppers,Weaving Parts,Textile Accessories, The total length of the stop pieces is 145mm, the width is 11mm, and the thickness is 1mm. The stop pieces are slanted and closed, with an inner length of 64mm and an inner width of 5mm for the upper slide. The inner length of the middle hole is 10mm and the inner width is 6mm. The weight of this stop piece is relatively large, and the weight of a single piece is 0.4g.
Stainless steel warp stop pieces are accessories for breaking and stopping the warp of a weaving machine. Their working principle is that the middle hole of the stop piece penetrates the warp yarn, and the upper slanted inner groove penetrates the stop strip. The gravity of the stop piece increases the corresponding swelling force on the warp yarn. When the warp yarn in the middle hole is broken, the stop piece falls, and the upper part of the slanted tip contacts the stop strip, triggering a local short circuit. At the same time, the circuit of the weaving machine controls the power off, thereby achieving the stopping function.
The above picture is a side view of 145 * 11 * 1mm menstrual cessation film, which is packaged with 2500 pieces per box and 250 pieces per box.
If textile factories, weaving factories, or trading companies need to purchase 145 warp stop pieces, Steel Droppers,Weaving Parts,Textile Accessories,textile machine warp stop parts, warp stop parts, or textile stainless steel parts, please contact Mr. Yang from our company for negotiation.
