Huixian Xinda Textile Machinery Parts Co., Ltd. provides customized processing services for silk loom shuttles with 350 wooden shuttles and four loaves of steel paper. The appearance parameters of the silk shuttles are: total length 35 centimeters, external width 3.5 centimeters, and height 2.5 centimeters. The front of the shuttles is equipped with nylon flexible with porcelain rings, and the left and right hands are judged based on the tilt direction of the flexible shuttles. The shuttle uses nylon clamps to fix the weft tube (filament tube). The nylon clamps are divided into edge and no edge. Generally, edge clamps are used for nylon shuttles, while bottomless nylon clamps are suitable for wooden shuttles.
The shuttle is equipped with photoelectric weft detection grooves on both sides. The picture above shows the right mobile phone shuttle, wrapped in red steel paper on the periphery. The internal wood material is Aogang wood, which has a linear texture on the surface, and has characteristics such as hard texture and good wear resistance. Silk weaving machines are generally commonly used in models such as K72, K251, and K611. The shuttle body design size is small, the weight is relatively light, and the weft tension is well controlled.

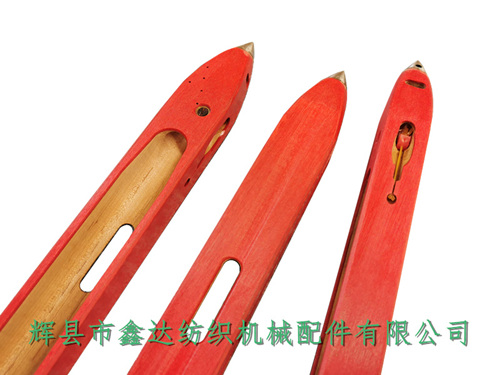

The shuttle tip of the 350 wooden shuttle is fixed with nuts due to the small size of the shuttle, which can damage the shuttle body when installing the angle mesh shuttle tip at both ends. The above diagram shows the front and two sides of the shuttle, and all four sides of the shuttle are covered with red steel paper.
The minimum order quantity for wooden shuttles with a size of 350*35*25mm is 300 pieces, with a delivery time of approximately 50-60 days. If only the same quantity as the one in the above picture is purchased, the minimum order quantity is 100 pieces. There are also various specifications of shuttles used in textile silk weaving machines, and in addition to different designs, other parts also vary.
The above diagram shows the detailed installation location of the living creature. If textile silk manufacturers need to purchase products such as K72 shuttle, K251 loom shuttle, 350 wooden shuttle, K611 silk shuttle, etc., please contact Mr. Yang from our company (Xinda Textile Machinery Accessories).
