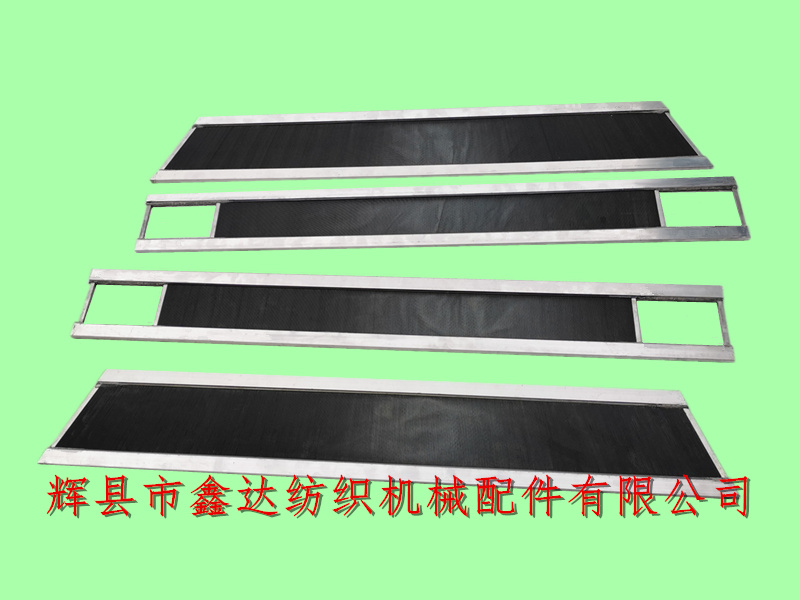

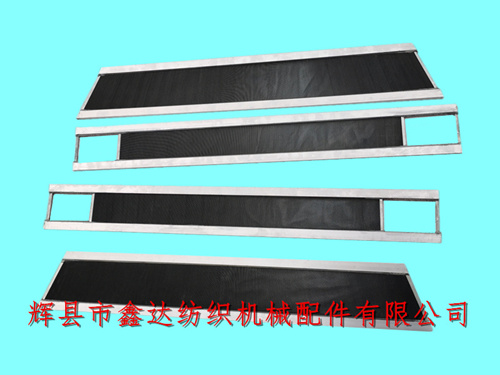

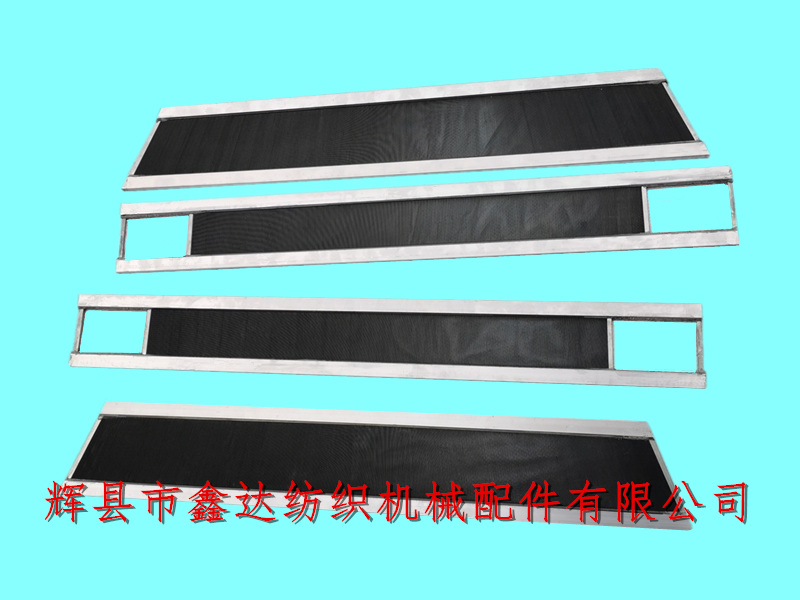

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile equipment accessories. Sizing Machine Reed,Carding Reed,Reed Customized, The sizing machine reed and combing reed are customized. The shape of the trapezoidal reed is isosceles trapezoid, and the height is generally 12cm. The upper beam and lower beam are wrapped with 18mm wide U-shaped aluminum alloy. The density of the upper part of the reed is greater than that of the lower part (affected by the length of the reed teeth), which can be inverted to change the use density. The textile combing reed is closely related to the twisting reed. The twisting reed is used to layer the warp yarn on the basis of the combing reed, so as to ensure that the opening of the upper warp yarn and the lower warp yarn forms a shed during weaving, and the shuttle can pass through safely, so as to meet the needs of fabric structure weaving production.
The reed in textile equipment has a relatively wide range of applications and a large density range. Sizing Machine Reed,Carding Reed,Reed Customized, It is generally customized according to the requirements of customers. The combing reed and combing reed are generally used to sort and arrange the warp in order, which is convenient for weaving or sizing production of normal process by loom or sizing machine.

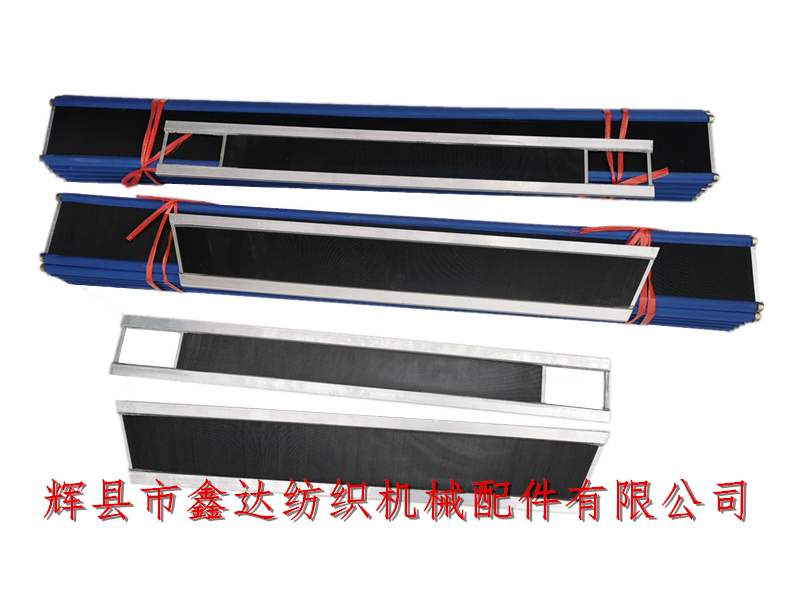

The blue hemmed reed in the figure above is an ordinary shuttle loom reed, with a processing length of less than 2.8m, a density range of less than 120 holes of 2 inches in British system, a processing range of reed height of 11-14cm, while the processing range of aluminum alloy hemmed reed is generally less than 22cm, and the standard use of 11cm or 12cm is limited to a length of less than 5.4m.
If you need to customize textile equipment products such as sizing machine reed, special-shaped combing reed, special sorting reed, wide edge tin welding and twisting reed, please contact Mr. Yang of Xinda Textile machinery accessories for consultation. We will first provide you with the schematic diagram and size of the reed for confirmation.
