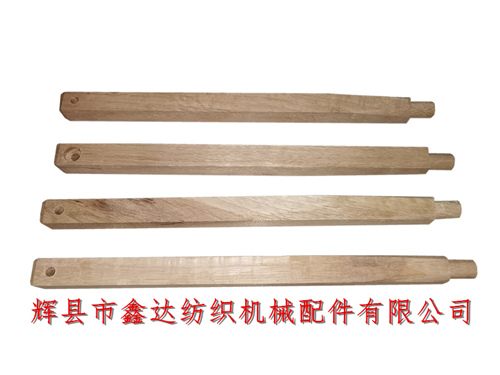

Our company provides the shuttle box accessory Q17 control wood of the automatic shuttle changing device of model 1511 loom. Loom Shuttle Box Parts Q17 Control Wood,Textile Wooden Parts,Loom Parts, The total length of the loom control wood Q17 is 40.6cm, the length of the spindle head is 2.6cm, and the outer diameter is 17mm; The width of the front square head is 24 mm, the height is 22mm, the width of the tail is 24.5mm, the height is 22mm, the inner diameter of the round hole is 8.6MM, and the inner diameter of the outer edge is 18mm. The control wood Q17 is divided into left and right hands, and the number used for each loom is 1.
Automatic shuttle change accessories-1511 loom controls the front and rear positions of wood Q17: place two shuttles, one in front and one in reverse, between the front brake rails K13 and Q17, and widen the spacing by 0.8mm. Textile wood-Q17 height position of control wood: use a three-way gauge to determine that the lower part of Q17 control wood is 13 mm away from the shuttle box bottom plate K15.
The tail of the control wood with holes is installed on K28 (shuttle box cover plate and control wood supporting feet), and the front end is connected with K45 (control wood supporting feet). The material of Q17 control wood in the above figure is Sophora japonica wood, 50 in each bundle, and the weight of a single loom control wood is about 0.13 kg.
1511 loom control wood is installed at the rear of the shuttle box on the shuttle changing side, and behind the shuttle box lifting the back plate Q6xQ7, which is used to assist the loom to change the shuttle stably. The main body length is (406-26=380) mm.
If textile mills and textile processing enterprises around the world need to purchase textile wood pieces - control wood Q17, shuttle box accessories of automatic shuttle changing device of loom Q17 control wood, please contact Mr. Yang of our company to consult details. We generally collect the full amount in advance and ship the goods according to the agreed delivery time. Logistics distribution is the default in China.
