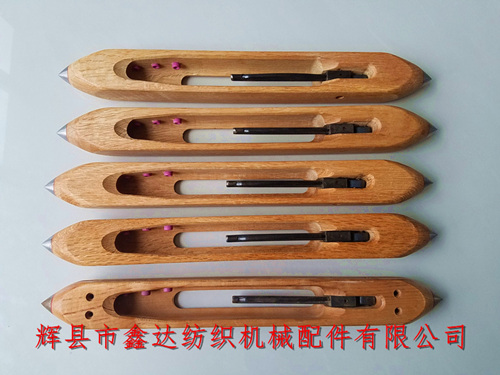

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 375*41*32 small pulley wooden shuttles (Cyclobalanopsis glauca) for hand looms. This wooden shuttle is suitable for hand looms. The total length of the shuttle body is 375mm, the width of the bottom is 41 mm, and the total height is 32 mm; The total internal length of the shuttle cavity of pulley shuttle is 240 mm, the effective internal length is 192 mm, the internal width is 27.3 mm, and the total length of the shuttle core with reed is 116.8 mm.
There are three 8*10mm purple alumina porcelain eyes on the front side of the manual shuttle, and the 8 mm wide silk loom bottom spring is used at the back of the shuttle. The rectangular head size of the spring leaf shuttle core is 23*10*13mm (length, width and height, see the figure below).
The lifting height of the shuttle core of the pulley wooden shuttle is blocked by the black steel pin below the shuttle column. The linear length of the spring piece on the shuttle core is 84 mm. This shuttle is generally left-handed, and the number of packages per box is 64.
The weight of a single-handle wooden shuttle with pulleys is 335g, which is about 35g less than that of a shuttle of the same size made of compressed wood. The minimum order quantity of this Cyclobalanopsis wood shuttle is 300 pieces, and the delivery period is about 40-45 days.
If you need to buy textile wooden shuttle, manual shuttle, wooden pulley shuttle, manual loom shuttle and other products, please contact Mr. Yang of our company for consultation. Or learn more about other parameters of 375*41*32 small pulley wooden shuttle (Qinggangmu,Cyclobalanopsis glauca wood) manual loom shuttle, or you can get in touch with us.
