Multi-eye Wire Heald For 3D weaving Loom of porous steel wire healds belongs to textile equipment. huixian city Xinda Textile Machinery Accessories Co., Ltd. provides porous steel wire healds of various models and specifications. Porous refers to the arrangement of multiple healds on the healds. In the process of three-dimensional weaving, multiple sheds are needed for weft insertion. As an important accessory for controlling the direction of warp movement, the shape and size of steel wire healds play a key role.
There are two kinds of manufacturing processes for multi-eye steel healds: one is that two steel wires are soldered side by side, and the other is made of flat steel wire (stainless steel). The heald of tin-welded steel wire is wound, while the brown wire of flat steel wire is cut in the middle of the whole steel wire, and then soldered. The length of steel wire healds in these two manufacturing methods is not limited.

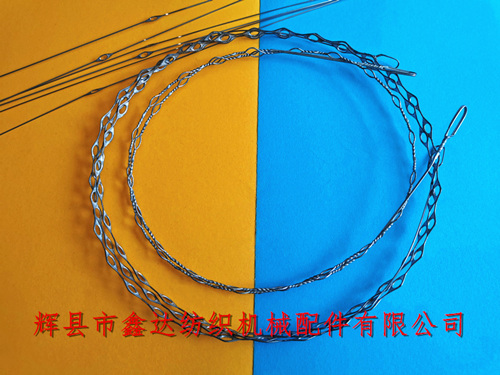

The weaving application material of porous heald is generally carbon fiber, and the fabric is mainly used in aerospace, aviation and other fields. The complex fabric structure determines the quality of the product. The above picture is from top to bottom: single-hole flat steel wire, porous flat steel wire and porous solder steel wire.
Under normal circumstances, the length of the multi-eye wire heald is about 1 meter, and the number of heddles arranged ranges from 4 to 80. Because this steel wire heddle has multiple heddles, it requires higher spacing between adjacent heddles and is relatively expensive.
The specification of the heald eye in the above picture is 1080R (Slip Ring circle, with an inner length of 6mm and an inner width of 4mm), the center spacing is 20mm, the width of flat steel wire is 1.4mm, and the thickness is 0.7mm The heald ear uses the general specification of 13*5mm, and special specifications need to be indicated on the drawings. Packing of multi-eye wire heald (3D Weaving Loom Parts) used in three-dimensional weaving of porous steel wire healds: 200 pieces/bag, minimum order quantity is 1000 pieces.
If textile scientific research enterprises need to purchase porous steel healds, multi-eye brown yarns, multi-eye healds, three-dimensional weaving accessories, shuttle textile equipment and other products, please contact Mr. Yang of our company for consultation.
