Huixian Xinda Textile Machinery Parts Co., Ltd. provides 935mm Heald Frame Wood Horizontal Head, 935mm composite frame wood horizontal head accessories, laminated wood plugs, and textile wood pieces. The wooden horizontal head is installed on both sides of the aluminum alloy composite frame, hence also known as the "composite frame plug" or "composite frame side stop". Its material is elm wood (laminated wood) or fruit wood, with a total length of 935mm, a width of 12mm, a thickness of 25mm, and an inner length of 735.4mm (using the length of composite wire).

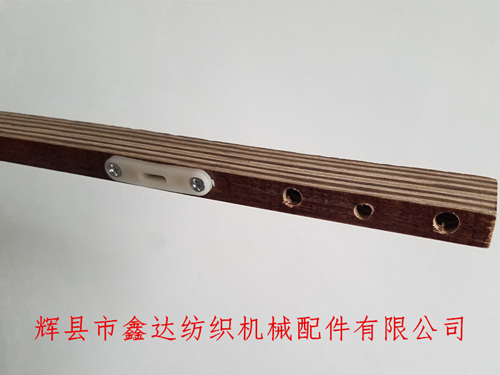

The white nylon block in the above picture is used to fix the wire rod (wire rod), and the three holes on the right are connected and fixed to the upper and lower beams of the aluminum alloy wire frame. The horizontal head is an important supporting component of the wire frame.

There are various ways to construct the frame of a weaving machine, and the commonly used beams on the frame include metal iron flat tubes (used in shuttle looms), aluminum alloys (used in multi arm shuttle looms and rapier looms, etc.), and wood (used in old-fashioned wooden looms or diagonal shuttle looms);

The minimum order quantity for textile wooden equipment - rapier machine frame plugs (wooden horizontal heads) is 50 pieces, and the delivery time is generally 8-10 days. The transportation method is logistics distribution. In addition, we can also provide metal 280, 305, 330,Heald Frame, Horizontal Head, Textile Wooden Parts etc.

If textile factories in various cities need to purchase textile wood horizontal heads, plugs, integrated heads, integrated frame accessories, integrated frame side stops, and textile wood products, they can contact Mr. Yang from our company for consultation and support timely delivery according to the provided drawings and requirements.
