Refitting Technology Of 1515 Small Loom

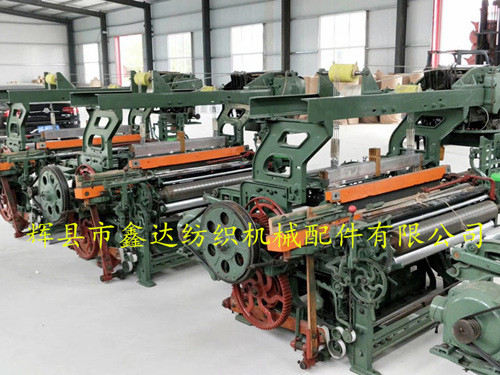

At present, the new-type loom refitting in the market mainly refits the loom heald lifting device, electronic stop device, start-up operation device, etc. by upgrading the various configurations of 1515 small loom, the main structure of the loom is optimized, and the operation is simple, maintenance is convenient and easy to understand. It really realizes the technical breakthrough of the loom refitting. The door width is mainly 32 inches, supplemented by 28 inches and 36 inches, between The wall panel of loom uses model 1515 (spherical surface), so the equipment is defined as 1515-32 inch small loom.

The machine adopts gt221 multi arm faucet and back heald box used in GA747 rapier loom to replace the original lifting heald mode. The use of multi arm faucet can meet the needs of customers in weaving twill, corduroy, cylinder cloth, denim, old coarse cloth, ethnic Tujia clothing cloth, etc., with good stability and small vibration range in weaving process after the weight of the machine increases.

The electric box (gt-7502 computer control box) is added to the 1515 small loom to realize the start, stop and reset functions of the shuttle loom through the button control. Some of them will increase the electromagnetic clutch device, which can stop quickly and reduce the loss of parts! The mechanical chicken pecking rice device is used for breaking the weft. The mechanical weft stop device has the advantages of simple maintenance and high weft insertion rate.

Some manufacturers will use 1511 loom wall panel assembly. The outstanding advantage of spherical wall panel is that the installation accuracy of bending shaft (crank shaft) is high and it is not easy to jump. Sp-iii external let off device is an upgrade design of internal let off and horizontal let off, with mature and reliable technology, simple maintenance and accurate let off ratio, which is suitable for weaving medium and thick fabrics.

The design technology of adding small wall board at the back of the frame of 1515 small loom can increase the front and back length of warp yarn on the machine, increase the size of shed properly, and reduce the phenomenon of thread breaking during weaving.

The fully automatic shuttle changing device stores 10 shuttles in batches, which can realize automatic shuttle changing without stopping and provide production efficiency; the design and combination of multiple healds can reduce the number of healds (brown wire and steel wire healds) on a single heald frame, so that the steel wire healds can slide horizontally when weaving.

This type of loom can be used for weaving products such as hand weaving, old rough cloth processing, Tujia cloth, funeral cloth, medical gauze, plain cloth, leather bag, etc. Small loom, loom modification, loom technology, 1515 - Huixian Xinda Textile Machinery Accessories Co., Ltd.
